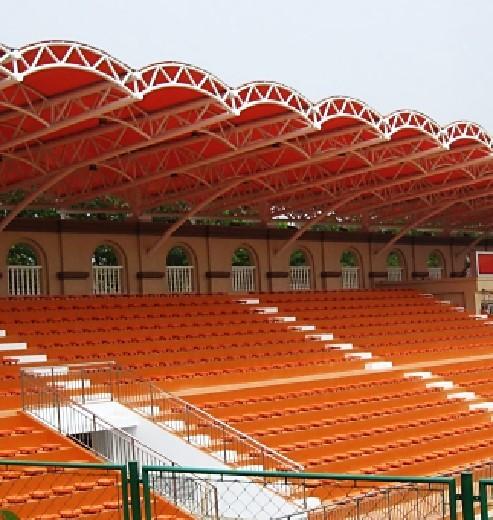

Steel Structure Stadium Tube-truss with Hot dip galvanized surface treatment

Tube-truss with Hot dip galvanized surface treatment.

Application: 7 people football stadium

Area: 1550㎡

Product Description

What is steel structure?
Steel structure is a metallic structure in which members composed of structural steel are connected to each other to carry a load and provide sufficient rigidity. Due to the high strength steel grade, this kind of structure is reliable and need less raw material than other types of structures such as concrete structures and wood structures. At the same time, it will use smaller foundation to reduce the concrete quantity to save the cost as its light steel structure material.
In modern buildings, steel structures are used in almost all types of structures, including heavy industrial buildings, high-rise buildings, light steel structure buildings, etc.

Product Specification

Components of steel structure hangar
● Primary Framing Elements
Columns, beams members are made by H section steels( hot rolled section steel/ welded section steel), which will be easily bolted together at site. A factory primer and facing paintings or galvanization surface treatment are applied to get better anti-rusting effect of primary framing elements.
● Secondary Framing Elements
Purlin, tie bar are formed as secondary framing, which will fix on columns and beams by common bolts.
● Bracing
Round steel is supplied with knee bracing and other supporting parts that need portal framing, which will improve the stability and durability of the whole structural hangar.
● Cladding
Roof and Wall are covered by color-coated corrugated steel sheet or steel sandwich panel, hot dipped with zinc and aluminum compound, that is fixed to the outside of structural building to protect it against bad weather or to make it look more attractive and last for generations.
● Windows and Doors
Plastic Steel Window/Aluminum-alloy Window; Sliding Sandwich Door/Electric rolling up shutter Door/lifting door
● Other Options:
Gutter, Downpipe, Transparent sheet, Ventilator and Bridge Crane will be fitted according to client’s requirements.

Features Of Steel Structure Hangar

1. Steel structures construction is light in weight, high in strength and large in span.
2. The construction period of pre-engineered steel hangar is short and the investment cost is reduced accordingly.
3. Pre-engineered steel structure hangar have high fire resistance and strong corrosion resistance.
4. Pre-engineered steel hangar is easy to move, no pollution recovery and good environmental protection.
5. Low investment in steel structures construction, economic benefits.
6. Steel buildings are also widely used in factories, warehouses, workshops, gymnasiums, large markets, office buildings, etc.

Features:

• Product Name: Steel Structure Hangar
• Drawing Design: SAP2000, AutoCAD, PKPM, 3D3S, TEKLA
• Connection: Bolt Connection And Welded Connection
• Grade: Q235B/Q345B
• Secondary Frame: Hot Dipped Galvanized Purlin
• Steel Texture: Q235B,Q345B

Technical Parameters:

Applications:

YDX-SSH121 Steel Structure Hangar is a versatile product suitable for various application occasions and scenarios. This steel structure hangar, proudly manufactured by YDX in CHINA, is designed to meet high-quality standards and cater to a wide range of needs.

With its robust construction and durable materials, this hangar is ideal for use as a steel warehouse, metal structure shed, or storage facility in industrial and commercial settings. The use of high-quality materials such as H Steel, Z or C Purlin ensures the structural integrity and longevity of the hangar, providing a long service life of up to 30 years.

The YDX-SSH121 Steel Structure Hangar is designed using advanced drawing software including SAP2000, AutoCAD, PKPM, 3D3S, and TEKLA, ensuring precise design and efficient construction. This makes it suitable for earthquake-prone areas up to Level 6, providing a safe and secure storage solution.

Customers have the flexibility to choose from different standards based on their specific requirements, making it a customizable option for various projects. Whether used as a steel warehouse for storing goods, a metal structure shed for sheltering equipment, or a storage facility for inventory, this hangar offers versatility and reliability.

Overall, the YDX-SSH121 Steel Structure Hangar is a dependable and practical solution for a wide range of application scenarios, providing a secure and durable space for storage, shelter, and more.

Customization:

Product Customization Services for the Steel Structure Hangar:

Brand Name: YDX

Model Number: YDX-SSH121

Place Of Origin: CHINA

Port: Qingdao

Steel Texture: Q235B,Q345B

Customization: Available

Secondary Frame: Hot Dipped Galvanized Purlin

Connection: Bolt Connection And Welded Connection

Support and Services:

Our Product Technical Support and Services for the Steel Structure Hangar include:

- Installation guidance and support

- Troubleshooting assistance for any structural issues

- Maintenance recommendations to ensure longevity

- Customization options to meet specific requirements

- Training sessions for proper usage and care

Packing and Shipping:

Product Packaging:

The Steel Structure Hangar will be securely packaged to ensure safe transport. It will be wrapped in protective materials and placed in a whole steel pallet to prevent any damage during shipping.

Shipping:

Once the Steel Structure Hangar is packaged, it will be shipped using a reliable transportation service. The shipping process will be carefully monitored to ensure timely delivery to the designated address. Customers will receive a tracking number to keep track of their shipment.
