Prefabricated steel structure metal construction poultry house

Light steel structure building is a new type of building structure system, which is formed by the main steel framework linking up square tube, C section steel components, roof andwalls using a single sheet& glasswool blanket&single sheet and other components such as windows, doors, etc.

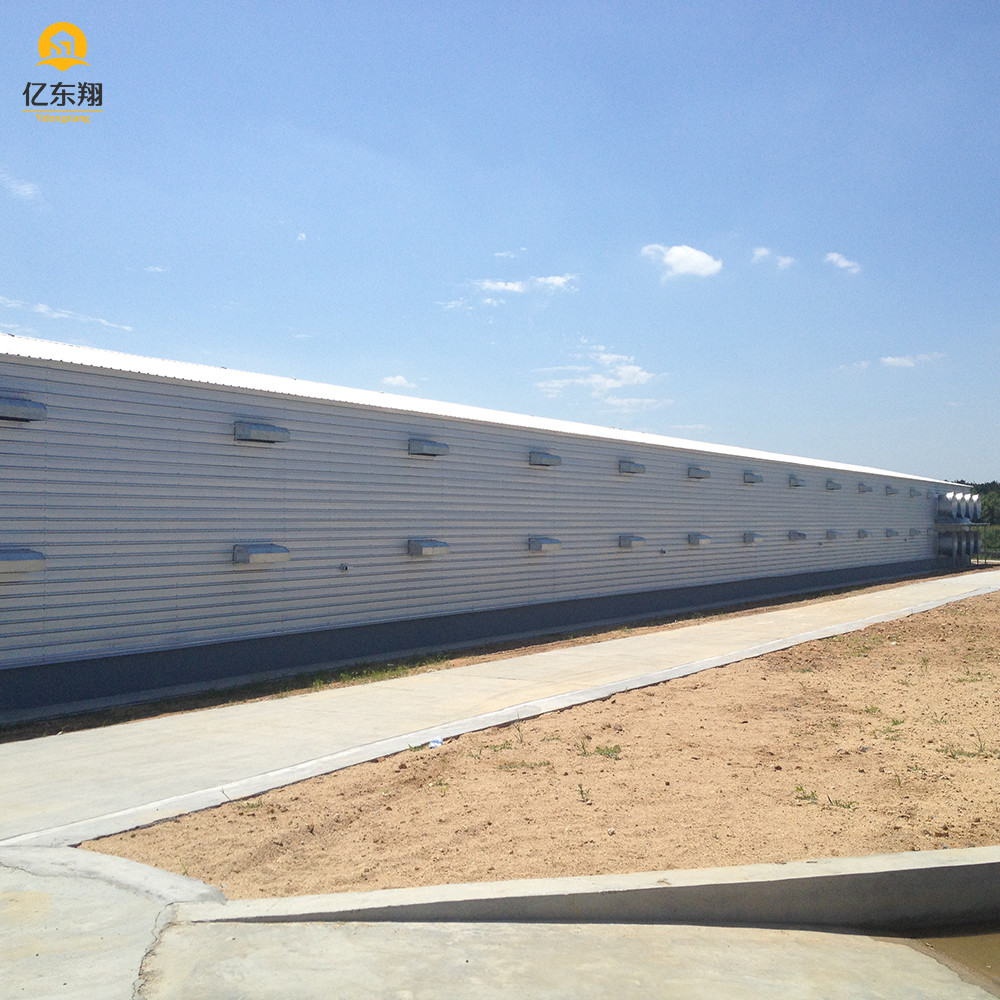

Light steel structure poultry house /chicken poultry house is an preengineered steel structure which is widely applied in modern breeding base.
We are professional in One-stop Service with effective design , manufacture and installation.

Main steel frame we adopt hot-dip galvanizing,C section or steel tube truss beam to reduce self-weight of design load and dosage of the steel. At the same time, hot-dip galvanized can widely improve anti-corrosion of the steel.

Roof purlin using the hot-dip galvanized Z or C section. All components adopt bolted connection, no welding, which makes the structure overall appearance smooth.

In order to satisfy the protecting material for 30 years, the outside roof is 0.5 mm aluminum zinc color steel plate. To prevent dewing phenomenon, 50 mm aluminum foil glass wool is laid at the bottom of the roof plate (can be customized according to the climatic conditions). To prevent sagging of the fiber wool, the wire mesh is added, which effectively improve the utilization rate of the glass wool insulation and moisture proof. To add ceiling panels below steel trusses and the ceiling panels laid horizontally is composite color plate, which not only improves the overall stability of steel trusses, but also plays a very good thermal insulation effect. The inside and outside walls laid horizontally is hot-dip galvanized color steel plate, which are all used self-tapping screw to connect into a whole, effectively increasing the lateral stability of steel columns. The indoor humidity is relatively large, so a layer of plastic film is added in order to prevent moisture from entering the fiber glass wool.

1.Main feeding system

This system delivers feed from the silo to the hopper in the poultry house. There is one feed sensor at the end of main feed line which control the motor on and off automatical to release

automatic delivery.

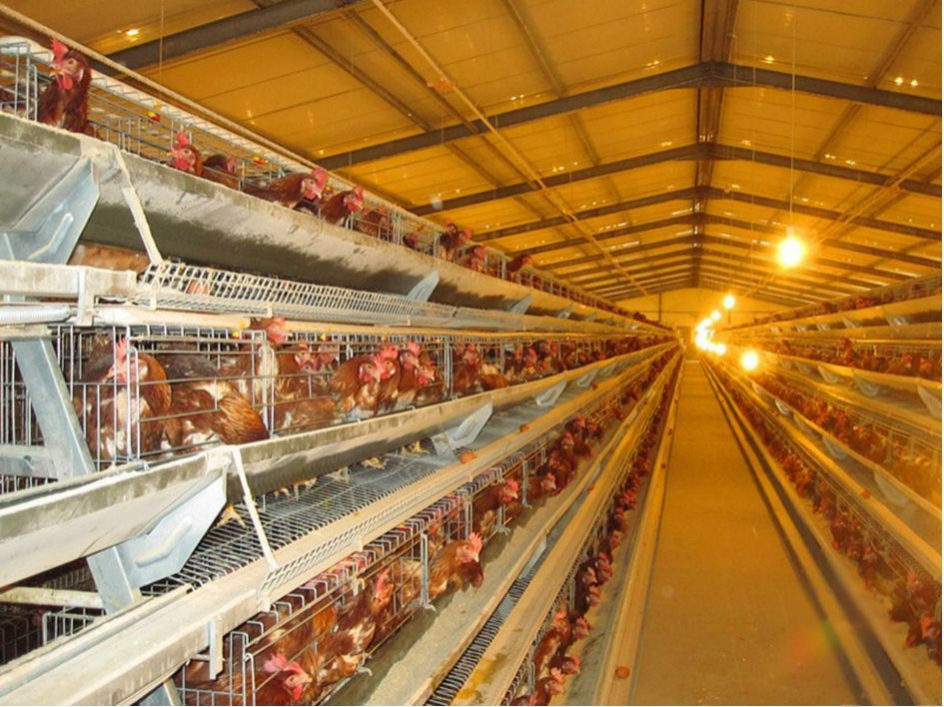

2.Poultry feed pan system

This system deliver feed automatically through motor under the control of feed sensor,which

ensure birds feeding during whole growing period

3.Nipple drinking system

This system can provide fresh and clean water for poultry which is crucial for the growth of

poultry.The drinkers can be triggered from 360 degree which helps young birds start well and

makes drinking easier.

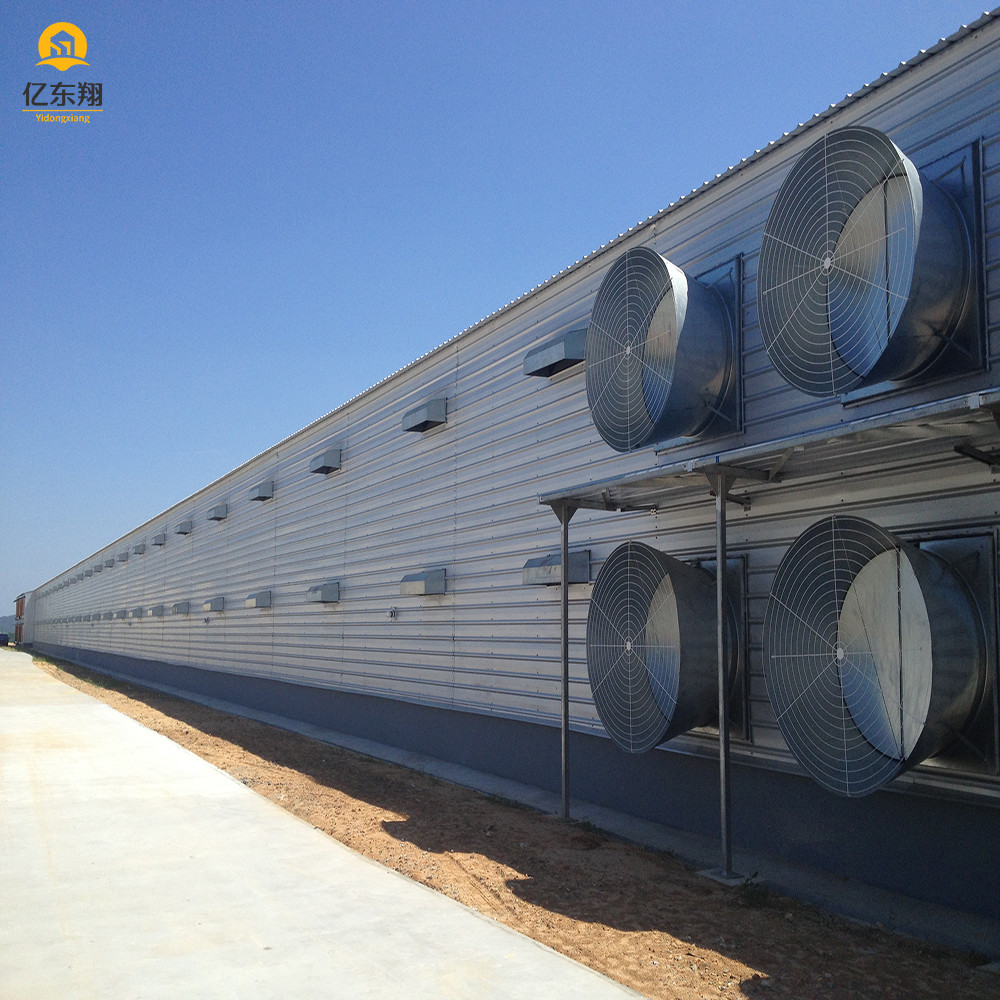

4.Ventilation system

This system controls climate conditions,fresh air,humidity and temperature in poultry shed,it

is vital for growing birds. This system include Poultry house fan, Cooling pad,Air inlet window.

5.Environmental control system

This system saves the labor and the resources under the condition of assuring the optimum

growth environment of the chickens. It is imported from Israel can set an optimum working mode

according to the local climate and raising environment.

6.Spraying system

This system effectively cools,humidifies,dedusts and disinfects the henhouse(the temerature is

quickly reduced by 3-8 degrees centigrade within a few minutes).

Qingdao Yidongxiang Steel Structure Co., Ltd.founded in 2002,The company is an innovative enterprise focusing on the steel structure construction industry which has been engaged in steel structure construction industry for more than 20 years. We are one of the biggest manufacturers of steel buildings in China with capacity over 10000 tons monthly,we have complete engineering team to provide customers with integrated system solutions from  technical construction,engineering design,program customization,manufacturing,installation and construction. We have successfully completed overseas projects in North America, South America, Asia and South Asia, Africa etc, and exported products to more than 80 countries and regions.

Based on the principles of innovation, cooperation, and integrity,our company is committed to providing our high-quality products and after-sales services to worldwide clients. We have unique competitive advantages in steel structure construction and we can provide customized solutions for customers.

Our company has obtained CE certification(EN 1090 certificate),ISO9001,ISO14001,ISO45001 certification. we also have got class one for the steel structure engineering professional contracting,class one for building decoration engineering professional contracting, class two for building engineering construction general contracting ,class two for municipal public Engineering construction general Contracting , class two for fire fighting facilities engineering professional contracting,class two for building curtain wall engineering professional contracting , class three for Urban and road lighting engineering professional contracting , class GB1, GB2, GC2 for special equipment pressure pipeline Installation , construction labor and other qualifications.Our company has been rated as a national AAA level credit enterprise in terms of quality, service and reputation.

 In recent years, our company has continuously introduced professional and technical talents, with engineering team for more than 50% of the total number of employees. we have strong technical and good business philosophy. At present, our company is a member unit of China Steel Structure Association, Qingdao Municipal Association, and Qingdao Heating Association.After 20 years of development, the company has established an excellent team integrating research and development, technology, sales, production, quality inspection and logistics. From product design to project work, we can provide professional and high-quality services. We look forward to working with you.
